CAT VERTICAL PIN KIHVA SÜSTEEM

KAEVEKIHV “VERTICAL PIN ELITE STD”

• Suurem töökindlus
• Kvaliteetne sulam / Pikem eluiga
• Püsib kauem teravana / Parem kaeve jõudlus

SIZE	REFERENCE	WEIGHT	A	B	C	ALTERNATIVE OEM	ADAPTER	PIN	RETAINER
V-14	TSV14L	1.4	164	59	49	4K-6936	TSP-23	4K-0043	4K-0041
V-15	TSV15L	2				4K-0034	TSP-18	4K-0043	4K-0041

KAEVEKIHV “VERTICAL PIN ELITE V”

• Suurem töökindlus
• Kvaliteetne sulam / Pikem eluiga
• Püsib kauem teravana / Parem kaeve jõudlus

SIZE	REFERENCE	WEIGHT	A	B	C	ALTERNATIVE OEM	ADAPTER	PIN	RETAINER
J-14	TSJ14V	1.4	158	59	4	4K6936 TIGER	TSP-23	4K-0043	4K-0041
J-15	TSJ15V	2				4K0034 TIGER	TSP-18	4K-0043	4K-0041

KAEVEKIHV “VERTICAL PIN STD”

SIZE	REFERENCE	WEIGHT	A	B	C	ALTERNATIVE TRASTEEL ELITE	ADAPTER	PIN	RETAINER
V-14	4K6936	1.4	156	55	55	TSV-14-L	TSP-23	4K-0043	4K-0041
V-15	4K0034	2	162	67	67	TSV-15-L	TSP-18	4K-0043	4K-0041

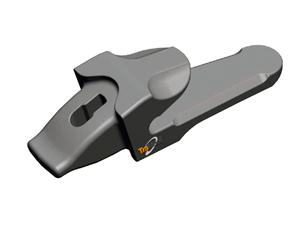

“VERTICAL PIN ” ADAPTER

SIZE	REFERENCE	WEIGHT	A	B		TOOTH		PIN	RETAINER
V-14	TSP-23	2.4				4K6936		4k0043	4k0041
V-15	TSP-18	3.3				4K0034		4k0043	4k0041

KIHVASÜSTEEM “CAT UNITOOTH”

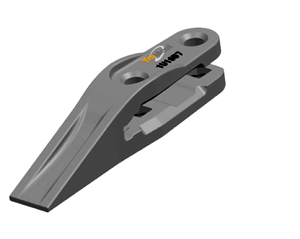

KIHV “CAT UNITOOTH”

SIZE	REFERENCE	WEIGHT	A	B		ALTERNATIVE	APPLICATION	BOLT	NUT
20	132-4720	19
20	6Y6335	34	280	76	22	9W-1878 135-8203	416-426-428-430-432-436-438 -442	4F3656	4K0367
20	8J6207	46	338	89	20		910 - 9 14 - 920 - 931- 933 - 935	5J4771	2J3506
25	1U1857	99					916-920-924-926-930-936-941-943	8J2928	2J3507
25	1U1867	162					950 - 955	8J2928	8J2933
30	1U1877	125	410	124	26		950- 955	8J2928	8J2933
30	1U1888	285					973 - 977 - 966	5p8361	5p8362

“CAT VERTICAL PIN” KIHVA FIKSAATOR

SIZE	PIN	LOCK
V-14	4K-43	4K-41
V-15	4K-43	4K-41
V-20	4K-32	4K-08
