H&L KIHVAD JA ADAPTERID

TEETH

ADAPTER

PIN & RETAINER

PENETRATION HD ELITE

Tooth with extra wear material and longer service life, excellent penetration and auto sharpening for heavy duty applications. Optimization of wearing ELITE.

• Suurem töökindlus
• Kvaliteetne sulam / Pikem eluiga
• Püsib kauem teravana / Parem kaeve jõudlus

[table “107” not found /]

H&L SP TEETH

SIZE	REFERENCE	WEIGHT	ADAPTER	PIN	ADAPTER
	230-SP	1.2	2740-23	23PN	834-23
	240-SP	1.7	2740-24	24PN	3000-24

H&L ST TEETH

SIZE	REFERENCE	WEIGHT	ADAPTER	PIN	ADAPTER
	230-ST	1.2	2740-23	23PN	834-23

H&L TL TEETH

SIZE	REFERENCE	WEIGHT	ADAPTER	PIN	ADAPTER
	23TL	1.1	2740-23	23-PN	834-23
	24TL	1.3	2740-24	24-PN	3000-24

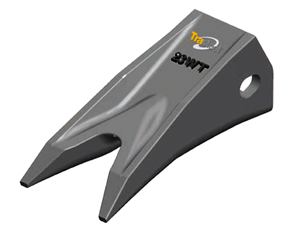

H&L WTL TEETH

SIZE	REFERENCE	WEIGHT	ADAPTER	PIN	ADAPTER
	23WTL	1.2	2740-23	23-PN	834-23
	24WTL	1.5	2740-24	24-PN	3000-24

H&L ADAPTER

FIG. 1

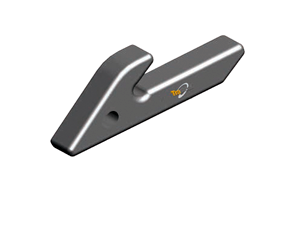

FIG. 2

SIZE	REFERENCE	WEIGHT	FIGURE	THICK BLADE	TOOTH	PIN
23	2740-23	1.9	1	16 / 20 / 25	230-S	23-PN
24	2740-24	2.2	1	16 / 20 / 25	240-S	24-PN
23	834-23	1.6	2	16 / 20 / 25	230-S	23-PN
24	3000-24		2	16 / 20 / 25	240-S	24-PN
